Water bottles seem simple, but behind every bottle is an orchestra of utilities, controls and safeguards. PET resin must be dried, melted, molded and cooled precisely; compressed air must be clean and oil free; vacuum, filtration and instrumentation ensure consistency and safety; and thermal control keeps molds and heaters at the right temperature. Relevant Solutions and Shop Relevant supply the equipment that surrounds stretch blow and injection machines, giving bottle producers a single source for compressed air, thermal systems, valves, filtration, instrumentation and safety equipment.
Below is a step by step look at how a PET water bottle is manufactured and the Relevant products that support each stage. We focus on the enabling systems compressed air, vacuum, filtration, thermal control and instrumentation rather than the molding machines themselves.
1. Build your plant’s utility backbone
Before resin ever enters a hopper, a bottle plant must have reliable utilities. Relevant Solutions provides the core infrastructure:
Compressed air

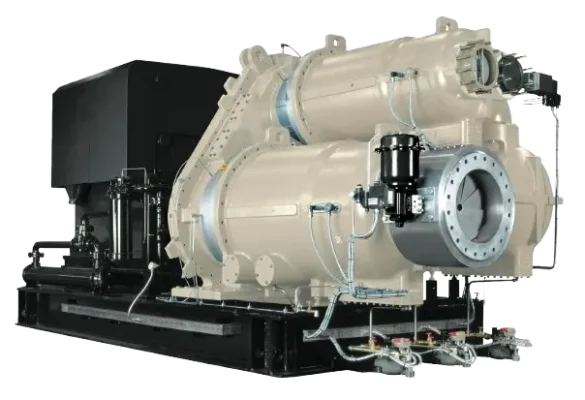

Industrial blow molding requires large volumes of clean, oil free air. Relevant supplies Ingersoll Rand reciprocating, rotary screw and centrifugal compressors that convert power into compressed air. Ingersoll Rand rotary compressors feature gear drive, built in starters and high ambient coolers for reliable operation, while Centac centrifugal compressors integrate the airend, driver, air cooling and lubrication systems. These units form the high pressure “lung” of your plant.
Thermal management
Heat exchangers, air cooled exchangers and steam surface condensers provide the cooling and heat recovery backbone. Relevant’s offerings include shell & tube heat exchangers, air cooled heat exchangers and steam surface condensers designed for high efficiency and optimized performance. Skid mounted thermal systems align with plant needs and support energy savings. These systems regulate mold temperature and recover heat, reducing waste and saving energy.
Air treatment

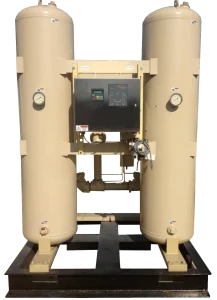

Bottle production demands dry, contaminant free air. Relevant’s desiccant, refrigerated and membrane dryers remove moisture and deliver ultra clean air to blow molders and pneumatic equipment. In line filtration protects downstream valves and instruments from particulates.
Valves & regulators

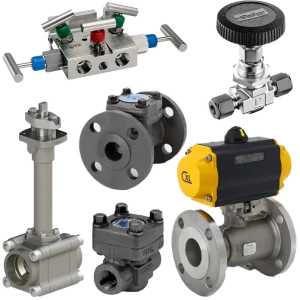

Precise fluid and air control is essential. Relevant offers a wide assortment of control valves, on/off valves and specialty regulators that ensure efficient, safe flow control across industries. The valves support blow air circuits, cooling loops and process utilities.
Filtration & purification
Removing contaminants from air, water and process fluids extends equipment life and ensures product purity. Relevant provides filter vessels, high purity gas filters, self cleaning strainers and membrane based water treatment systems. Multi stage purification setups integrate with existing systems to improve efficiency.

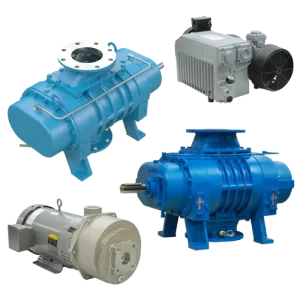

Vacuum systems
Radiator hoses are crucial for transferring coolant between the engine and the radiator. These hoses are built to withstand the extreme heat and pressure generated by the engine, ensuring reliable cooling system performance.
Instrumentation & automation
Pressure, flow, temperature and level instruments, transmitters, analyzers and control components help monitor every parameter. Relevant’s expertise in system design, integration and commissioning ensures that sensors work seamlessly with PLCs and HMIs.
Safety systems

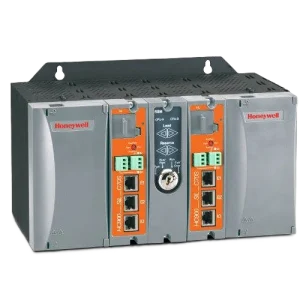

Honeywell flame and gas detection systems protect personnel and equipment. Safety valves and regulators maintain safe operating pressures.
Example product:
Ashcroft’s 1008 series analog pressure gauge (2.5 inch dial) offers precise readings up to 10 000 psi. Its stainless steel case and liquid filled design protect internal components from vibration; a bronze sensing tube and ¼ inch NPT connection provide durability. Such gauges monitor compressor output, pneumatic lines and test stations.
2. Receive, dry and convey PET resin
- Unloading & storage: Pneumatic conveying systems transfer pellets from transport vehicles into silos. Oil free compressed air and vacuum pumps provide the motive force. Inline filters remove dust and protect blowers.
- Drying: Pellets must be dried to remove moisture before melting. Desiccant dryers ensure low dew point air. Thermal equipment (heat exchangers and coils) preheats air and recovers waste heat.
- Conveying to molding lines: Vacuum pumps convey dried pellets to day bins. Pressure gauges and transmitters monitor conveying pressures and hopper levels; instruments from Ashcroft, Honeywell and WIKA provide reliable readings.
Example product:
Parker’s 2F F2L 1 SS instrumentation valve is constructed from 316 stainless steel and provides precise flow control in instrumentation and process systems. It offers corrosion resistance and durability, ensuring system integrity when connecting air conveyance lines or sensors.
3. Form preforms (or receive them)
PET preforms—the test tube shaped blanks that become bottles—are either purchased or injection molded in house.
- If molding in house: Preform injection machines rely on cooling water and thermal control. Shell & tube heat exchangers and steam surface condensers manage the heat of the injection barrel and the mold. Air cooled heat exchangers remove waste heat from hydraulic oil and machine drives. Temperature sensors, transmitters and controllers from Relevant monitor melt and mold temperatures.
- If receiving preforms: Use the compressed air, vacuum and filtration utilities described above to convey preforms to the blow molder. Pressure gauges verify conveying pressures; in line filters protect the preforms from contamination.
4. Reheat & stretch blow molding (RSBM)
Here preforms are reheated, stretched axially and blown into the final bottle shape. This step requires precise control:
- Pre blow & blow air: High pressure, oil free compressed air must be extremely clean. Ingersoll Rand centrifugal and rotary compressors deliver the airflow; desiccant or membrane dryers and in line filters ensure the air is dry and contaminant free. This prevents haze and stress marks on bottles.
- Thermal control: Heating ovens must maintain accurate temperature profiles. Plate, shell and tube and air cooled heat exchangers maintain mold and oven temperatures. Temperature sensors and transmitters monitor zone temperatures and adjust heaters accordingly.
- Vacuum & exhaust: Vacuum pumps remove air from molds to ensure crisp bottle definition and quick release.
- Valves & regulators: Blow and pre blow circuits use control valves, solenoid valves and regulators to time air delivery. Relevant’s portfolio ensures precise control across high pressures and fast cycle times.
5. Trim flash, remove scrap and condition bottles
After blowing, bottles may have excess plastic flash at the neck or base. Trimming stations rely on:
- Compressed air and vacuum: Air cylinders actuate cutters and blow off nozzles, while vacuum systems remove scrap.
- Instrumentation: Pressure gauges and transducers verify that cutting air and blow off pressures are correct. Ashcroft, Ametek and WIKA gauges from Shop Relevant provide reliable indication for operators.
6. Quality testing and leak detection
- Pressure transmitters & transducers: Devices like Honeywell’s SmartLine STD720 transmitter offer explosion proof and intrinsically safe certifications and use a 316 stainless steel diaphragm with silicon oil fill fluid. The STD720 provides an adjustable range from −400″ to +400″ H₂O, outputs a 4–20 mA/HART signal and is housed in a dust proof, powder coated aluminum enclosure. Such transmitters measure leak test pressure and maintain calibration.
- Manifold valves: When calibrating transmitters or isolating test devices, manifold valves like the NOSHOK 3010 FFS provide isolation and equalization. Constructed of 316 stainless steel with a hard seat, this 3 valve manifold handles up to 10 000 psi and temperatures to 200 °F, with a ½ in NPT female connection and 0.187 in orifice for precise flow control.
- Instrumentation valves & filters: Instrument valves and inline filters from Parker ensure instruments see clean, regulated media. Stainless steel construction offers corrosion resistance and durability.
7. Packaging and warehousing
After passing quality checks, bottles are bulk packaged or moved directly into filling and packaging lines. Additional systems include:
- Nitrogen generation (optional): For blow and fill operations where bottles are filled immediately, on site nitrogen generation creates high purity nitrogen for inerting headspace or dosing lightweight bottles. Relevant supplies non cryogenic PSA and membrane systems for food, oil & gas and marine applications.
- Instrumentation & monitoring: Flow controllers, level sensors and wireless transmitters monitor bottle accumulation tables and conveyers. Condition monitoring systems track compressor health to prevent unplanned downtime.
Summary: Matching process steps to Relevant Solutions products
| Process Phase | Key Relevant Product Categories | Example Products & Notes |
|---|---|---|
| Utilities & plant setup | Air compressors, dryers, filtration, vacuum pumps, heat exchangers, valves/regulators, instrumentation, safety systems | Ingersoll Rand rotary & centrifugal compressors; desiccant dryers & in line filters; shell & tube heat exchangers and steam surface condensers; control valves & regulators; sensors/transmitters; Honeywell flame & gas detectors. |
| Resin handling & drying | Vacuum pumps & compressors, air dryers, filter vessels, instrumentation & tubing | High performance vacuum pumps (Ingersoll Rand, MD Kinney, Howden); filter vessels and high purity filters; instrumentation valves like Parker 2F F2L 1 SS for flow control. |
| Preform molding & conditioning | Heat exchangers, cooling coils, temperature sensors, pressure gauges, air compressors | Shell & tube and air cooled heat exchangers; instrumentation (temperature & pressure sensors); Ashcroft 1008 pressure gauge for monitoring machine pressures. |
| Blow molding | Oil free compressed air, dryers & filters, valves & regulators, heat exchangers, vacuum pumps, instrumentation | Ingersoll Rand blow air compressors; desiccant dryers & filters; control valves & solenoid valves; heat exchangers for mold temperature control. |
| Trimming & scrap removal | Compressed air & vacuum, instrumentation | Vacuum pumps for scrap removal; pressure gauges & transducers (Ashcroft, Ametek, WIKA). |
| Quality testing | Pressure transmitters & transducers, manifold valves, flow indicators, instrumentation | Honeywell SmartLine STD720 transmitter; NOSHOK 3010 FFS manifold valve; Parker instrumentation valves & filters. |
| Packaging & warehouse | Nitrogen generation, flow & level instrumentation, compressor health monitoring | PSA & membrane nitrogen generators for inerting; flow/level sensors and wireless transmitters; condition monitoring for compressors. |
Closing thoughts
Making a PET water bottle is more than injecting and blowing plastic—it is a complex process supported by a network of utilities and controls. Relevant Solutions and Shop Relevant provide the compressed air systems, heat exchangers, vacuum pumps, filtration, valves, instrumentation and safety equipment that make bottle lines reliable and efficient. Whether you are upgrading an existing plant or designing a new facility, their breadth of products and engineering expertise ensure that each stage—from pellet handling to leak testing—runs smoothly, safely and cost‑effectively.
