Champion Compressor and Compressed Air System Offerings
Champion has supported compressed air users since 1919 with a broad portfolio of reciprocating, rotary screw, and rotary scroll compressor technologies. The manufacturer also offers air dryers, filters, condensate management equipment, piping, lubricants, and related components for complete compressed air systems.
Relevant Solutions helps industrial facilities select Champion equipment according to required airflow, operating pressure, duty cycle, air-quality targets, installation conditions, electrical service, controls, and long-term maintenance needs. Our team can support new systems, replacement projects, capacity expansions, equipment upgrades, and compressed air system improvements.
Champion provides compressor technologies for intermittent, continuous, fixed-demand, variable-demand, point-of-use, and clean-air applications. Available configurations range from compact packaged units to larger industrial systems with receivers, dryers, filtration, controls, and supporting accessories.

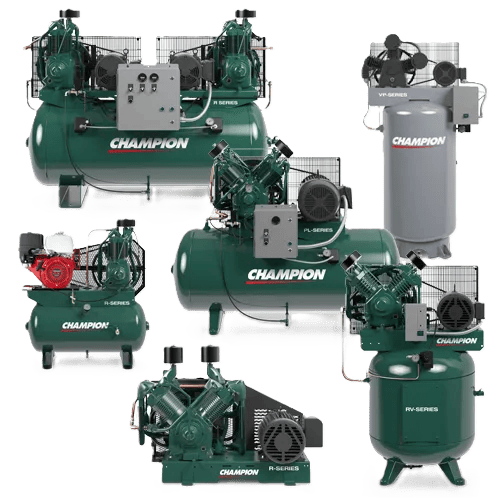

Reciprocating Air Compressors
Champion reciprocating compressors are suited to applications that require dependable compressed air with intermittent or varying use. The portfolio includes single-stage and two-stage designs, lubricated and oil-less options, electric and engine-driven packages, and vertical or horizontal receiver configurations. Product families include the A-Series, Advantage, Commandair, PL-Series, R-Series, RV-Series, VP-Series, Revolution, and other application-specific packages.
Reciprocating technology is often selected for maintenance shops, smaller production areas, automotive service, pneumatic tools, backup air, and applications where the compressor does not need to run continuously at full load.

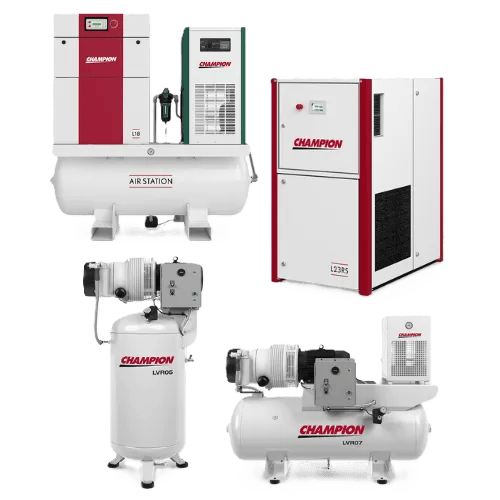

Oil-Lubricated Rotary Screw Compressors
Champion fixed-speed and variable-speed rotary screw compressors are designed for industrial operations that need stable air delivery and higher duty cycles. Fixed-speed models are well suited to relatively consistent demand, while variable-speed drive models adjust motor speed as air requirements change, helping reduce unloaded operation and unnecessary energy use.
Champion rotary screw product families include the D Series, DRS Series, L-Series, and LRS Series. Depending on the model and system requirements, configurations may include base-mounted units, tank-mounted packages, enclosed compressors, direct-drive or belt-drive arrangements, and complete air stations with dryers and filtration.

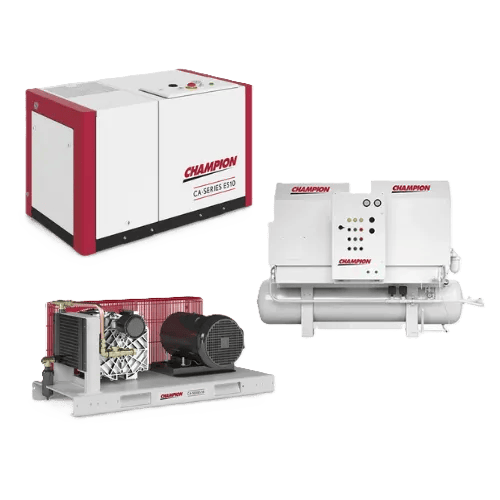

Oil-Less Reciprocating and Rotary Scroll Compressors
Champion oil-less compressors are designed for applications where oil cannot be present in the compression chamber or compressor package. The portfolio includes V and W Series oil-less reciprocating compressors, CA-Series oil-less rotary scroll packages, and enclosed CA-Series ES configurations for industrial, laboratory, medical, and other clean-air uses.
Oil-less rotary scroll technology can provide low vibration, reduced sound, a compact footprint, and 100 percent duty-cycle capability in selected configurations. Equipment selection should be based on the required air purity, flow, pressure, redundancy, applicable standards, and environmental conditions.

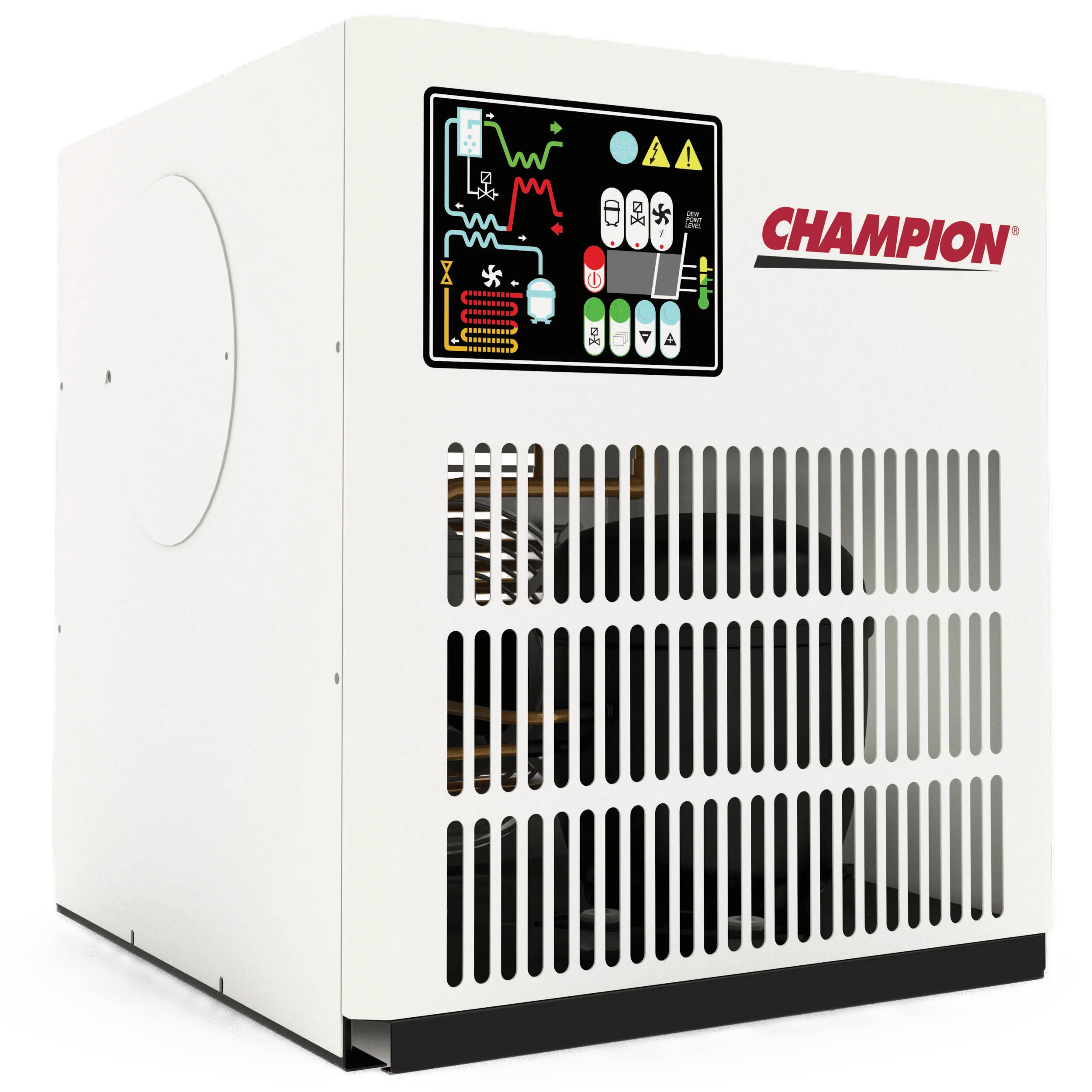

Compressed Air Dryers, Filters, and Separators
Compression naturally produces heat and moisture, while airborne particles and oil aerosols may also enter the air system. Champion air treatment products help protect downstream equipment, improve air quality, reduce corrosion, and support consistent process performance. Available solutions include refrigerated air dryers, desiccant air dryers, point-of-use dryers, filters, mist eliminators, separators, and filter-regulator-lubricator assemblies.

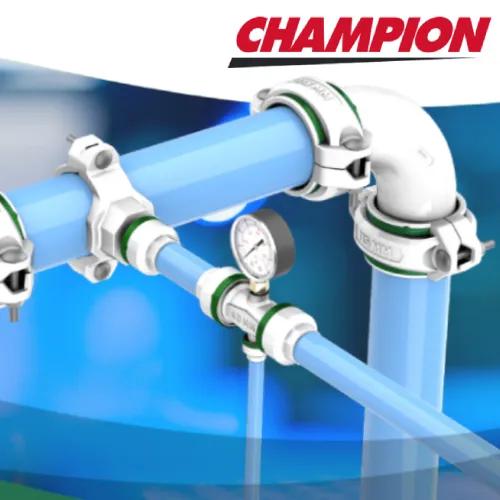

Condensate Management, Piping, and System Accessories
Champion Air Compressor Applications
Champion compressor technologies can support facilities that need dependable plant air, tool air, process air, clean air, or point-of-use compressed air. Final equipment selection should reflect the operating environment and the actual demand profile rather than nameplate capacity alone.
Packaging, Woodworking, and Material Handling
Reliable compressed air is used for clamps, controls, cutters, nailers, conveyors, packaging machines, and product movement. Consistent pressure, adequate storage, moisture removal, and correctly sized distribution piping are important for maintaining equipment performance across the facility.
Manufacturing and Assembly
Compressed air supports pneumatic tools, actuators, controls, packaging machinery, blow-off, material movement, and automated production equipment. Rotary screw compressors are commonly considered for continuous plant demand, while reciprocating units may serve intermittent production areas, maintenance departments, or backup requirements.
General Plant Air and Utilities
Champion compressors can support centralized plant air, maintenance air, instrument air preparation, and other utility requirements. A complete system review should consider peak demand, average demand, pressure stability, storage, treatment, distribution losses, and future capacity needs.
Laboratory, Medical, and Clean-Air Applications
Selected Champion oil-less reciprocating and rotary scroll systems support applications that require clean compressed air and reduced contamination risk. System design may also require dryers, filtration, monitoring, redundancy, and documentation based on the applicable process or facility standard.
How Do You Select the Right Champion Air Compressor?
The right Champion compressor is selected by matching compressor technology and package configuration to the facility’s real air demand. Airflow and pressure are important, but duty cycle, air quality, installation environment, and lifecycle cost can be equally important.
- Required airflow in cubic feet per minute, including normal demand, peak demand, and expected future growth
- Minimum operating pressure at the point of use, including pressure loss through dryers, filters, receivers, and piping
- Duty cycle and demand profile, including whether usage is intermittent, constant, or highly variable
- Required air quality, dew point, filtration level, and oil-free or oil-less requirements
- Electrical voltage, phase, available power, motor starting method, and control requirements
- Installation space, ambient temperature, ventilation, sound limits, elevation, and indoor or outdoor conditions
- Maintenance access, service intervals, spare parts strategy, redundancy, and allowable downtime
- Total system requirements, including storage, dryers, filtration, drains, oil-water separation, and distribution piping
A reciprocating compressor may be the practical choice for intermittent demand, while a fixed-speed rotary screw compressor may fit stable continuous loads. Variable-speed rotary screw technology can be appropriate when demand changes substantially throughout the day.
Champion Compressor Parts, Service, and Lifecycle Support
Compressed air equipment is most reliable when the compressor, air treatment, controls, storage, and distribution system are maintained as one connected utility. Relevant Solutions can help industrial customers plan service requirements and address issues that affect pressure, air quality, energy use, and uptime.
- New compressor selection, replacement planning, and system sizing
- Installation coordination, start-up support, and turnkey project requirements
- Preventive maintenance planning and service agreements
- Troubleshooting, repair, emergency support, and equipment assessments
- Genuine replacement parts, filters, separators, lubricants, and maintenance items
- Air dryer, filtration, condensate, storage, and piping improvements
- Capacity, pressure, and demand reviews for expanding or changing facilities
Why Choose Champion Through Relevant Solutions?
Champion offers a broad range of compressor and air treatment technologies, allowing equipment to be selected around the application rather than forcing every facility into one compressor type. Relevant Solutions adds application support, system knowledge, field capabilities, and lifecycle assistance to help customers move from equipment selection through installation and long-term operation.
- Application-based guidance for reciprocating, rotary screw, and oil-less technologies
- Support for complete compressed air systems, including dryers, filters, drains, receivers, and piping
- Industrial rotating equipment experience for new installations, upgrades, replacements, and service needs
- Local customer support backed by the broader Relevant Solutions service and supply network
- One point of contact for equipment, parts, service, and engineered project requirements
Request a Champion Air Compressor Quote
Contact us today to discuss a Champion reciprocating compressor, rotary screw compressor, oil-less compressor, air dryer, filtration package, replacement unit, parts requirement, or service need. Our rotating equipment team can help review the application and identify a practical compressed air solution for your facility.
Frequently Asked Questions About Champion Air Compressors
What types of air compressors does Champion manufacture?
Which Champion compressor is best for continuous operation?
A rotary screw compressor is commonly considered for continuous-duty applications. The correct choice depends on required airflow, pressure, demand variation, installation space, efficiency goals, and maintenance preferences. A compressed air specialist should review the operating profile before final selection.
Does Champion offer oil-less compressed air systems?
Yes. Champion offers oil-less reciprocating and rotary scroll compressor systems for applications where oil cannot be present in the compression chamber or package. Available configurations include the V and W Series, CA-Series, and enclosed CA-Series ES packages.
What Champion air treatment equipment is available?
Champion offers refrigerated dryers, desiccant dryers, filters, mist eliminators, separators, condensate drains, oil-water separators, and related air treatment products. These components help control moisture, particles, oil aerosols, and condensate throughout the compressed air system.
How fast can SmartLine Anytime support urgent transmitter needs?
Yes. Relevant Solutions can review the existing compressor, nameplate data, operating pressure, air demand, duty cycle, air treatment, piping, installation space, and service history. This information helps determine whether a like-for-like replacement, capacity change, technology change, or broader system improvement is appropriate.
What information is needed to request a Champion compressor quote?
Useful information includes required airflow, operating pressure, voltage and phase, duty cycle, air-quality requirements, available installation space, ambient conditions, receiver and dryer needs, preferred controls, and photographs or nameplate details for replacement projects.
