Understanding Industrial Network Protocols
Modbus, EtherNet/IP, and Profinet are three of the most common industrial communication protocols used to move data between PLCs, drives, instruments, and supervisory systems. The practical rule is straightforward: Modbus fits simple device data exchange and legacy integration, EtherNet/IP supports real-time control and scalable plantwide connectivity over standard Ethernet, and Profinet is designed for high-performance industrial Ethernet at the field I/O level, with strong diagnostics and deterministic real-time control, including motion when IRT is used.
If you understand how each protocol handles data, timing, and diagnostics, you can choose a network approach that is easier to maintain, easier to scale, and more resilient in real plant conditions.
Why Industrial Networking Decisions Show Up in Downtime Metrics
Industrial networks are no longer “just wiring.” They dictate how quickly you can troubleshoot a drive fault, how confidently you can add devices during a turnaround, and how safely you can segment control traffic from business systems. In modern plants, networking choices directly influence:
- Availability: Unstable communications can look like process upsets or equipment faults.
- Maintainability: Better diagnostics reduce troubleshooting time and repeat failures.
- Scalability: A network that works for one skid can become fragile as it grows.
- Cybersecurity Posture: Segmentation is easier when communications are predictable.
A helpful way to think about this is to separate “protocol selection” from “network infrastructure.” Protocols define how devices exchange data and report status, while infrastructure defines how reliably that traffic moves through the plant. If you are evaluating the infrastructure side, Relevant Solutions’ Industrial Networking and Communications overview provides a practical view of common building blocks, including industrial Ethernet switches, protocol gateways, media converters, and secure routing options, all of which directly affect reliability and long-term supportability.

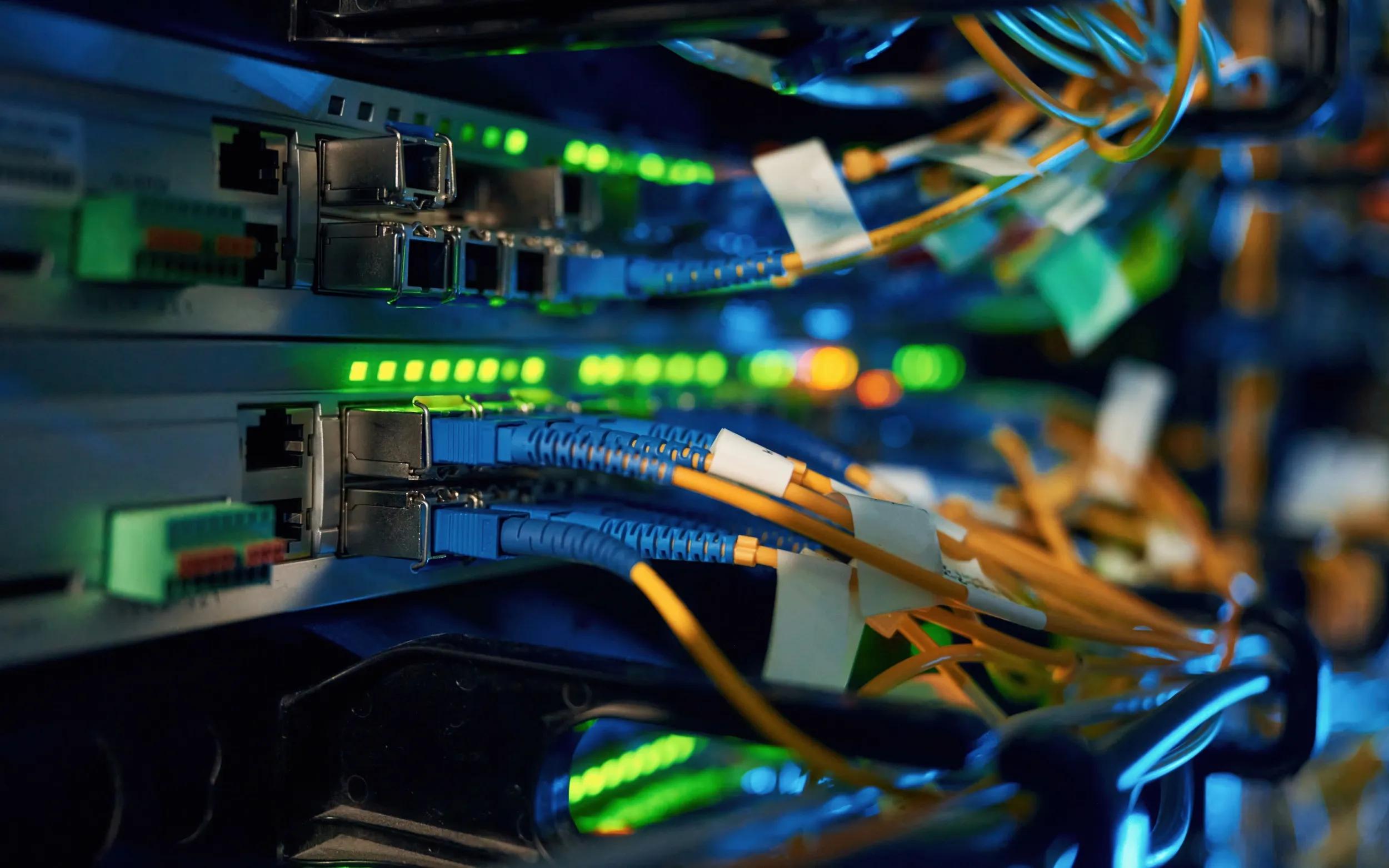

Quick Primer: Protocol vs Physical Network
A common source of confusion is mixing “Ethernet” with “industrial Ethernet protocols.
- Ethernet is the physical and data-link foundation. It defines how frames move on a network.
- Protocols like EtherNet/IP and Profinet define how automation devices represent data, exchange cyclic I/O, report diagnostics, and establish connections on top of Ethernet.
- Modbus can run over serial (RTU, ASCII) or over Ethernet (Modbus TCP), but it remains a simpler request-response model with a register-based data map.
This distinction matters because plants can have excellent cabling and switches yet still suffer from poor protocol design, weak segmentation, or unmanaged multicast behavior.
Modbus Basics: Simple, Widely Supported, and Still Everywhere
What Modbus Is
Modbus is a serial communication protocol originally published by Modicon in 1979 and widely used to exchange data between electronic devices in industrial automation. In modern architectures, you will most often see Modbus RTU over RS-485 for legacy devices and Modbus TCP over Ethernet for newer instrumentation and gateways.
How Modbus Communicates
Modbus is typically described as client-server (historically master-slave). A client requests data or writes a value; the server responds. Data is organized into four common entities:
- Coils: 1-bit discrete outputs
- Discrete Inputs: 1-bit read-only inputs
- Input Registers: 16-bit read-only values
- Holding Registers: 16-bit read/write values
Where Modbus Fits Best
Modbus is often the right choice when you need:
- Straightforward polling of process values from instruments or meters
- A common, vendor-neutral way to integrate third-party devices
- A simple interface for edge gateways collecting plant data
- A consistent protocol that can span multiple network layers, from field instruments to PLCs and up to SCADA or supervisory systems
Practical Limitations
Modbus can be extremely reliable when implemented correctly, but it has constraints you need to plan for:
- Register maps are not self-describing, so documentation and naming discipline matter.
- Polling architectures can become slow as device counts grow.
- Modbus TCP does not provide deterministic timing, which limits its suitability for high-speed motion or tight synchronization.
- There are no native diagnostics, so visibility into communication health and device status is limited without external tools.
- There are no built-in security mechanisms, meaning data exchanges can occur between devices without authentication, encryption, or access restriction unless additional controls are added at the network level.
EtherNet/IP Basics: CIP On Ethernet for Control and Information
What EtherNet/IP Is
EtherNet/IP is an industrial Ethernet protocol that operates over standard Ethernet and TCP/IP to support real-time data exchange in automation systems. It is most commonly used for cyclic I/O communication between controllers and field devices, with configuration and diagnostics typically handled through associated engineering tools rather than directly over the network protocol.
Explicit vs Implicit Messaging
Two terms matter in day-to-day troubleshooting and design:
- Explicit messaging: Client-server style transactions typically used for configuration, diagnostics, and data collection.
- Implicit messaging: Time-critical I/O data typically carried using UDP for efficient updates and multicast behavior.
This split is one reason EtherNet/IP can scale from device configuration to real-time I/O without switching protocols.
Where EtherNet/IP Fits Best
EtherNet/IP is often the best fit when your environment depends on:
- Plantwide controller-to-controller communications
- A network strategy that uses managed switching, segmentation, and disciplined multicast control
Practical Limitations
EtherNet/IP networks are commonly impacted by design choices related to cyclic I/O behavior and overall network engineering:
- Poorly managed I/O traffic can place unnecessary load on network infrastructure and end devices, especially as connection counts increase.
- Network segmentation and traffic management practices at the Ethernet layer are often required to maintain stable I/O performance as systems scale.
Profinet Basics: Industrial Ethernet with Real-Time Performance And Diagnostics
What Profinet Is
Profinet is an industrial Ethernet standard designed for data communication in industrial systems, with emphasis on delivering data under tight time constraints and supporting robust diagnostics. It is maintained by PROFIBUS and PROFINET International.
Profinet RT vs Profinet IRT
Profinet is often described using different performance classes, but in practice many applications simply use Profinet without explicitly distinguishing between RT and IRT during specification or operation.
- Profinet RT covers the majority of industrial automation use cases, supporting data exchange for standard control, I/O, and device communication.
- Profinet IRT extends Profinet capabilities for specialized applications that require very tight timing control, such as highly synchronized motion or coordinated drive systems.
In most plants, Profinet RT meets application requirements without additional configuration or awareness of performance classes. Profinet IRT is typically relevant only in niche, high-performance scenarios where deterministic timing is a primary design driver and is usually introduced intentionally by OEMs or system integrators rather than end users.
Where Profinet Fits Best
Profinet is best suited for industrial environments where reliable, communication between controllers and field I/O is required, particularly within Ethernet-based automation architectures.
It is commonly used for:
- Controller-to-field I/O communication in factory and process automation
- Applications that benefit from standardized device integration and diagnostics
- Systems where consistent update behavior is required but does not necessarily demand explicit motion-level determinism
While Profinet supports advanced real-time capabilities, most users experience it as a robust, general-purpose industrial Ethernet protocol rather than a performance-class-driven technology. The underlying complexity is typically managed by the automation platform and engineering tools, allowing users to focus on application behavior rather than protocol mechanics.
Side-By-Side Comparison: What Matters in the Field
| Category | Modbus (RTU/TCP) | EtherNet/IP | Profinet |
|---|---|---|---|
| Core Strength | Simplicity and broad device compatibility | Widely adopted industrial Ethernet for scalable controller and I/O communication | Real-time industrial Ethernet optimized for field I/O performance and diagnostics |
| Typical Data Model | Fixed coils and registers | Tag-based data exchange between controllers and devices | Symbolic variable addressing defined by device descriptions (GSDML files) |
| Timing Behavior | Polling-based communication with variable update rates | I/O communication with configurable update intervals | Real-time communication with support for tighter timing control when required |
| Best Fit | Instruments, meters, analyzers, and legacy device integration | General-purpose control networks and distributed I/O over Ethernet | Field I/O networks in factory and process automation environments |
| Scaling Risk | Poll rate management and register mapping discipline | Traffic growth without intentional network segmentation | Infrastructure and device capability alignment as system performance demands increase |
Key protocol characteristics described above are grounded in widely used vendor and standards documentation for Modbus, EtherNet/IP, and Profinet.
How To Choose the Right Protocol for Your Plant
1. Start With the Control Platform and Installed Base
Most plants do not choose protocols in isolation. They standardize around the controllers, OEM skids, and instrumentation already in place. A realistic approach is:
- Standardize one primary backbone protocol for the majority of I/O and control.
- Support the others through gateways and well-defined interface boundaries.
2. Define The Timing Requirement in Plain Terms
Instead of debating protocol names, define the requirement:
- Is this monitoring and reporting data where a few seconds is acceptable?
- Is this general control where millisecond-level I/O is needed?
- Is this high-performance synchronization or motion where jitter and determinism dominate?
Profinet IRT exists specifically to reduce variable delays in time-critical communication.
3. Decide How You Will Troubleshoot At 2 A.M.
Networks fail in ways that look like process issues. For sustainable operations, prioritize:
- Consistent naming and documentation
- Predictable configuration workflows
- Diagnostics that identify where data is delayed or lost
4. Plan For Multi-Protocol Reality
Even when a plant “standardizes,” Modbus devices still show up in analyzers, metering, packaged equipment, and legacy assets. Build a network design that expects translation points and treats gateways as managed, documented assets, not one-off patches.
Architecture Patterns That Reduce Long-Term Support Cost
Well-designed industrial networks share common architectural traits that reduce troubleshooting effort and lifecycle cost.
Pattern 1: Segmented Control Zones with Clear Interface Points
Use network segmentation to protect time-sensitive control communications from general IT traffic and other nonessential data flows. A segmented architecture helps maintain predictable network behavior as systems grow and simplifies the application of cybersecurity policies by clearly defining trust boundaries and interface points between control and noncontrol networks.
Pattern 2: Protocol Gateways at Defined Boundaries
Instead of converting protocols ad hoc device by device, place gateways at logical boundaries, such as:
- Skid interface
- MCC and drive island
- Analyzer shelter
- Remote I/O marshalling area
This makes changes easier during expansions and turnarounds, and it simplifies troubleshooting.
Pattern 3: Data Consolidation for Historians and IIoT
If your goal includes historian integration, analytics, or remote monitoring, define a data egress strategy early. Many plants use industrial networking hardware and edge devices to consolidate values from Modbus TCP, EtherNet/IP, and Profinet into higher-level systems while maintaining segmentation and least-privilege communications.
Key Takeaways for Maintenance, Controls, And Operations Teams
Modbus, EtherNet/IP, and Profinet are not competing buzzwords. They are tools built for different tradeoffs:
- Modbus keeps integration simple and is broadly supported for instruments and legacy assets.
- EtherNet/IP provides CIP-based control and configuration, with explicit and implicit messaging that supports real-time I/O on Ethernet.
- Profinet is an industrial Ethernet standard with strong real-time performance options, including IRT for time-critical determinism.
The best choice is the one that matches your control platform, performance needs, maintainability requirements, and long-term expansion roadmap.
