Confirm Whether the Pump Can Reach Its Ultimate Pressure Alone
If a vacuum pump is not pulling down, the fastest way to separate leak checks from pump health checks is to isolate the pump from the vessel, confirm whether the pump alone can reach its expected ultimate pressure, and then test the system for pressure rise. When the isolated pump meets spec, the problem is usually in the chamber, piping, seals, valves, contamination, or instrumentation. When the isolated pump still cannot reach spec, the focus should shift to oil condition, restrictions, internal wear, seals, temperature, vibration, current, and power draw.
Why a Vacuum Pump That Will Not Pull Down Is Usually Not Just One Problem
Many troubleshooting calls start with the assumption that the pump is failing. In practice, poor pull-down is often a system issue, not just a pump issue. The pump’s ultimate pressure is the lowest pressure it can achieve at its inlet, while the chamber pressure will be higher whenever leaks, outgassing, or process gas load are adding gas back into the system. That distinction matters because it tells you where to troubleshoot first.
It also explains why two systems with the same pump can behave very differently. One may pull down quickly because the vessel is clean, tight, and well instrumented. Another may stall because of a leaking flange, a dirty chamber, restricted piping, a clogged filter, insufficient capacity, or a gauge that is giving you the wrong story. Before you pull the pump apart, separate the pump from the installation and verify what the pump can do on its own.
Start With a Pump-Only Ultimate Pressure Check
The most efficient first step is a pump-only check. Isolate the evacuated vessel from the pump system, place a known-good gauge at the right measurement point, and confirm whether the pump system alone reaches the expected ultimate pressure. This simple split test tells you whether to spend your time on leak checks or on pump health checks. Leybold’s troubleshooting guidance explicitly recommends separating the vessel from the pump system and ensuring the pump system alone reaches ultimate pressure before moving deeper into system leak work.
If the pump reaches its expected pressure when isolated, the problem is usually outside the pump. At that point, inspect the vessel, flange connections, seals, drain points, pipework, valves, and measurement chain. If the isolated pump does not reach pressure, inspect the pump itself for low oil, clogged inlet or exhaust elements, overheating, internal wear, or contamination. Also remember that a faulty or dirty vacuum gauge can imitate a pump problem, so gauge verification belongs in the first pass, not as an afterthought.
Leak Checks When the Isolated Pump Is Healthy
When the pump passes the isolation check, the next question is whether you have a real leak or heavy outgassing. The pressure rise method is one of the most useful ways to separate those two conditions. After the system is pumped down and isolated, a roughly linear pressure rise points toward a leak. A pressure rise that gradually tapers off is more consistent with gas liberation from chamber walls, contamination, or other outgassing effects.
That difference matters because the fix is not the same. A true leak sends you toward flanges, seals, drain valves, pipework, and valve positions. Outgassing pushes you toward cleanliness, trapped vapors, process residues, or wet product load. If the pressure rise test indicates a real leak and the application requires tighter leak integrity, helium-based leak detection can localize the exact point more efficiently than repeated teardown-and-retry cycles. The real goal is not theoretical perfect vacuum tightness in every application, but leak tightness low enough to preserve required process pressure, stability, and repeatability.
Pump Health Checks When the Isolated Pump Is Not Healthy
If the isolated pump still will not reach expected pressure, the pump itself deserves a health check before the process line is blamed any further. For oil-sealed rotary vane pumps and similar designs, common checks include oil level, oil condition, inlet screen cleanliness, inlet filter condition, exhaust filter condition, operating temperature, and abnormal noise. Low oil, partially clogged screens or filters, worn internal parts, and excessive heat can all reduce vacuum performance.
Pump condition also shows up in what the machine is telling you physically. Black or emulsified oil points toward contamination, long oil intervals, or liquid and vapor ingestion. Excess temperature can reflect poor cooling or exhaust restriction. Noise and vibration can indicate stuck vanes, bearing problems, imbalance, or other wear. Busch’s dry pump guidance also highlights corrosion, coating loss, seal failure, abnormal power consumption at ultimate pressure, and pressure-rise behavior in the installation as practical ways to differentiate a faulty pump from a leaking system.
Leak Checks vs. Pump Health Checks at a Glance
The comparison below condenses manufacturer troubleshooting guidance on leaks, outgassing, restrictions, worn components, oil condition, and monitoring signals.
| What You Observe | Most Likely Direction | Best Next Check | What to Monitor Over Time |
|---|---|---|---|
| Isolated pump reaches expected ultimate pressure | System leak, contamination, outgassing, or bad instrumentation | Pressure rise test, flange and seal inspection, valve and drain check | Pump-down time, chamber pressure trend, leak recurrence after maintenance |
| Isolated pump does not reach expected ultimate pressure | Pump health issue | Oil, filters, temperature, noise, vibration, and internal wear inspection | Pressure, power, current, vibration, temperature |
| Pressure rise is linear after isolation | Real leak | Leak localization, then seal or piping correction | Pressure rise rate before and after repair |
| Pressure rise tapers off after isolation | Outgassing or contamination | Cleanliness review, trapped vapor review, process load assessment | Pump-down repeatability after cleaning or bake-out |
| Slow pump-down with heat, noise, or abnormal power | Developing mechanical or process damage | Health check and service planning | Power draw, vibration trend, thermal trend, service intervals |

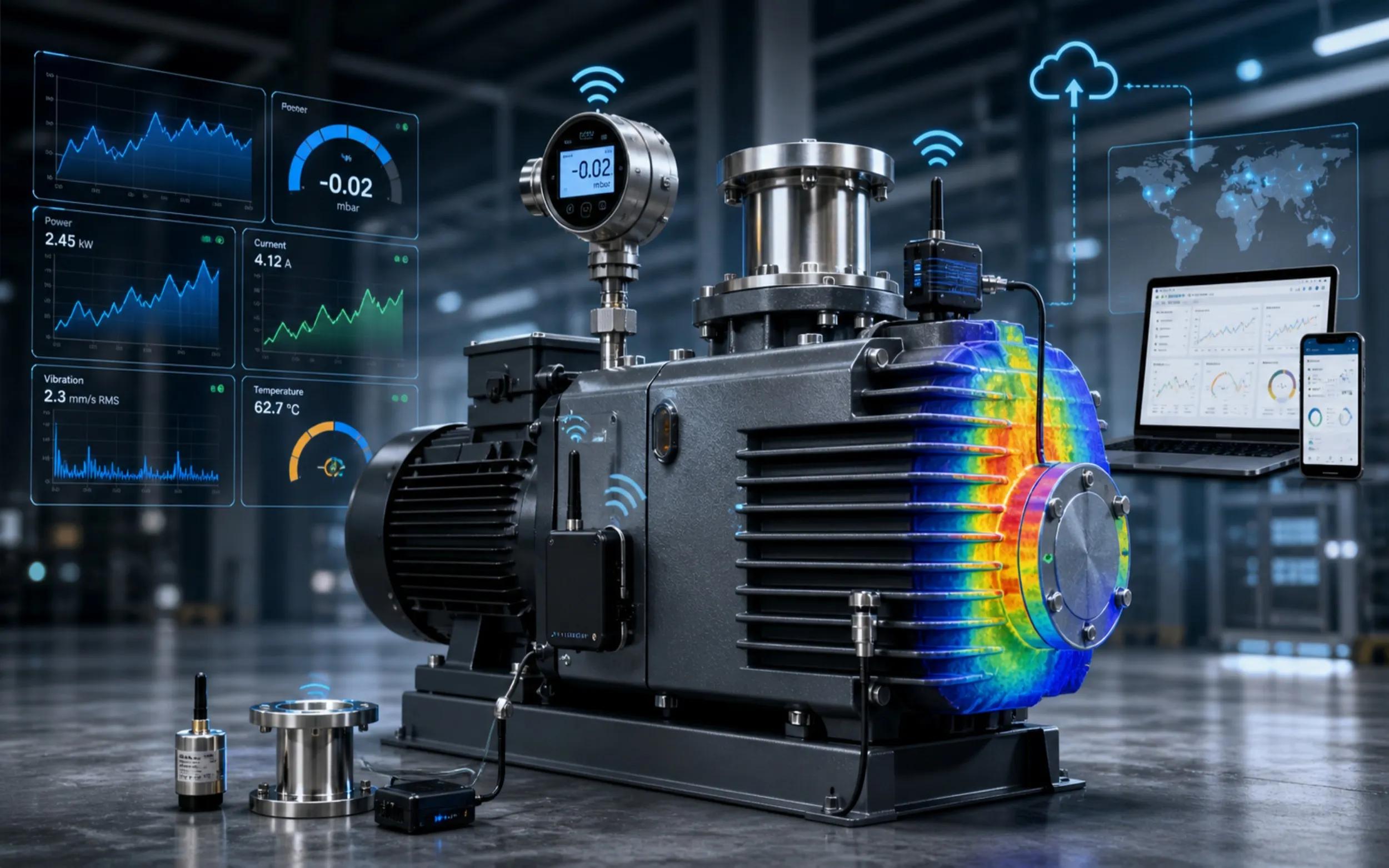

Why Monitoring Matters More Than Another Emergency Teardown
The teams that solve these problems fastest usually have baseline data. They know what normal pump-down time looks like, what pressure the pump should achieve when isolated, and how pressure, power, current, vibration, and temperature trend when the pump is healthy. That makes it much easier to spot whether a new problem is a leak, a restriction, contamination, or internal wear.
Manufacturers increasingly support this approach. Vacuum monitoring platforms now trend parameters such as pressure, current, power, vibration, and temperature to identify early deterioration and support predictive maintenance. Pressure instrumentation also matters more than many teams expect, because modern plant control relies on measured values being visible, transmitted, and recorded over time rather than checked only during failure events.
This is also where Relevant Solutions fits naturally into the troubleshooting conversation. Relevant Solutions supports vacuum pump solutions, pressure measurement instrumentation, and rotating equipment service programs that include vibration trending, infrared imaging, remote analytics, and preventive maintenance support. For brownfield systems where adding wired measurement points is difficult, Relevant also offers wireless pressure monitoring options.
And for stocked instrumentation and replacement components, teams can also browse pressure instrumentation on ShopRelevant.

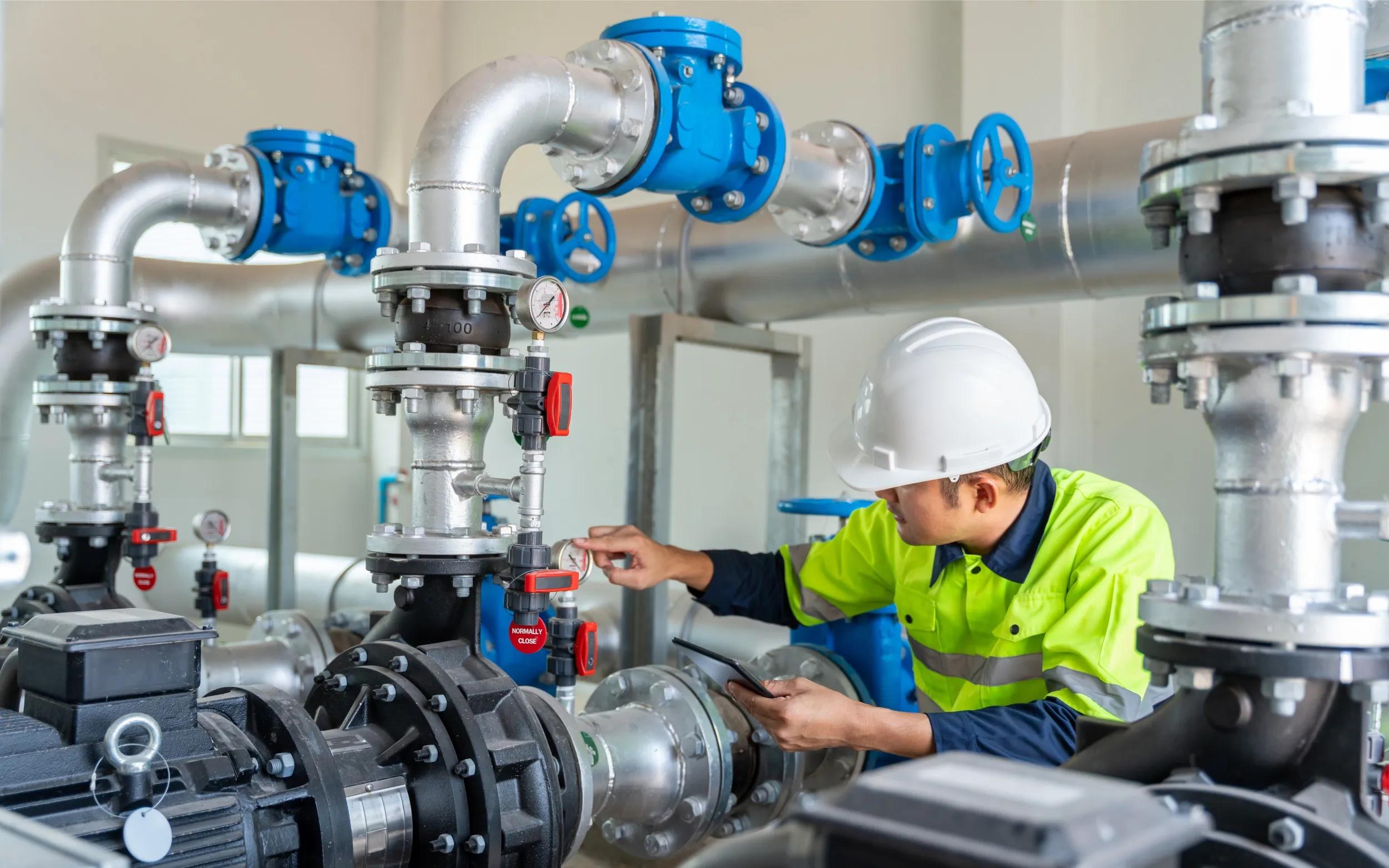

What Industrial Teams Should Standardize Before the Next Pull-Down Problem
The best long-term fix is to standardize the way you diagnose poor pull-down. Document the expected isolated pressure for each pump and application. Keep a known-good gauge available. Record normal pump-down time for a clean, leak-tight system. Trend temperature, vibration, and power where the application justifies it. Then when a pump stops pulling down, your team can compare real data against a baseline instead of debating where to start. That reduces downtime, avoids unnecessary pump overhauls, and makes leak detection efforts far more targeted.
Ready to Restore Vacuum Performance?
When a vacuum pump will not pull down, the right next step is not guesswork. It is separating system leaks from pump health issues with an isolation check, a pressure rise test, and the right monitoring points. Once you know whether the problem lives in the chamber, the piping, the instrumentation, or the pump itself, repairs become faster, safer, and more cost-effective.
At Relevant Solutions, we supply and support vacuum pumps, rotating equipment services, and pressure instrumentation for industrial operations. Our team can help you evaluate pump-down problems, specify gauges and transmitters for better visibility, and support repairs, replacement, or monitoring upgrades that reduce repeat failures.
Contact our team at Relevant Solutions today to discuss your application and build a vacuum troubleshooting approach that protects uptime.
Frequently Asked Questions (FAQs)
How do I tell whether the problem is a leak or the pump?
Start by isolating the pump from the vessel and confirming whether the pump system alone reaches its expected ultimate pressure. If it does, the problem is usually in the system, such as a leak, contamination, outgassing, or instrumentation. If it does not, inspect pump health.
What does a pressure rise test tell me?
A pressure rise test helps distinguish a real leak from outgassing. A roughly linear rise after isolation points toward a leak. A rise that tapers off is more consistent with gas release from internal surfaces or contamination.
Can a bad gauge make a good pump look bad?
Yes. Manufacturer troubleshooting guidance specifically notes that defective or contaminated gauges can mislead operators during vacuum diagnosis. Verifying the measurement chain is part of the first troubleshooting step.
What should I monitor continuously on a vacuum pump?
At minimum, monitor pressure and pump-down time. For higher-value or higher-risk systems, add temperature, vibration, current, and power trending. Those parameters can show early deterioration before vacuum performance collapses.
When should I repair the pump instead of keep chasing leaks?
If the isolated pump cannot meet expected pressure and you also see heat, noise, vibration, abnormal power, poor oil condition, or signs of wear, the pump should move into a health-check or repair workflow. Continuing to chase system leaks alone will usually waste shutdown time.
